TLSE Series
Shandong Topline
100

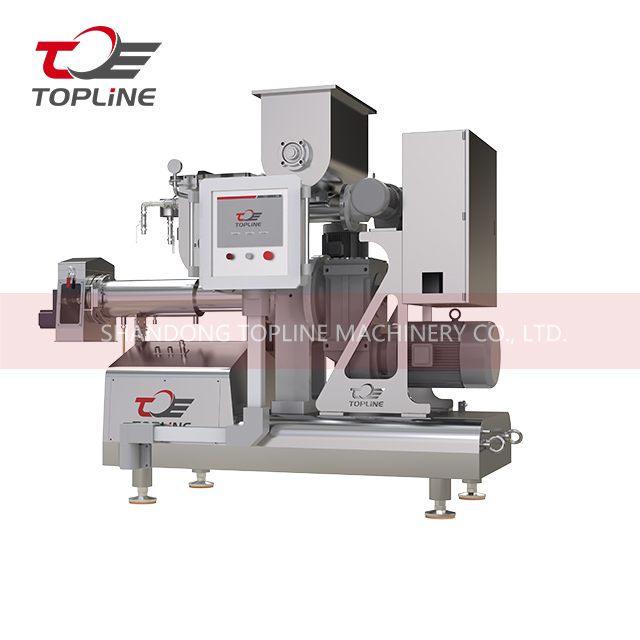

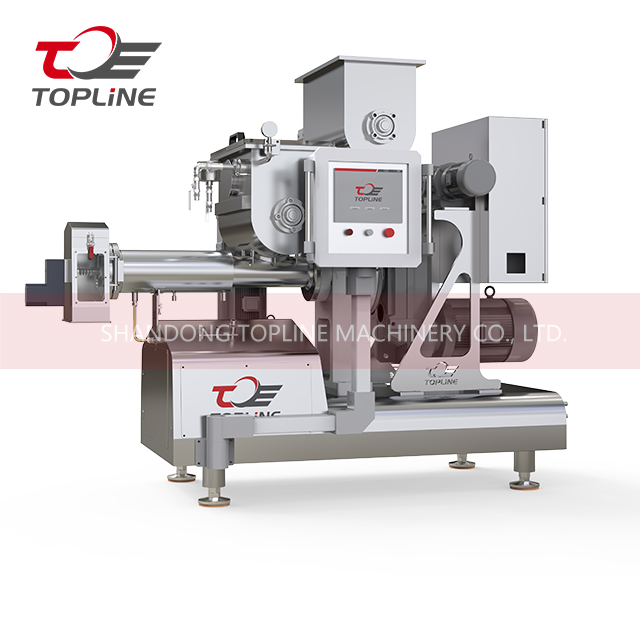

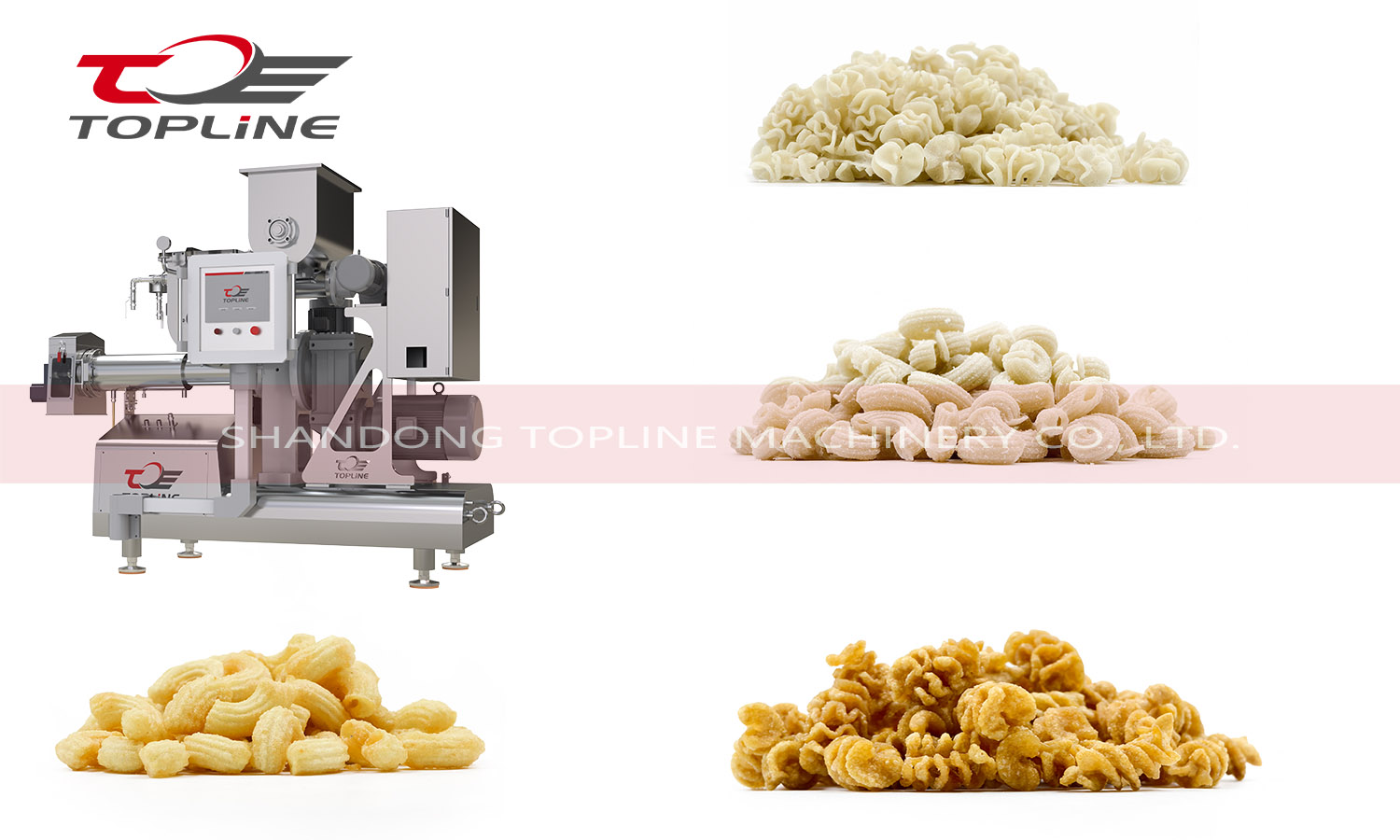

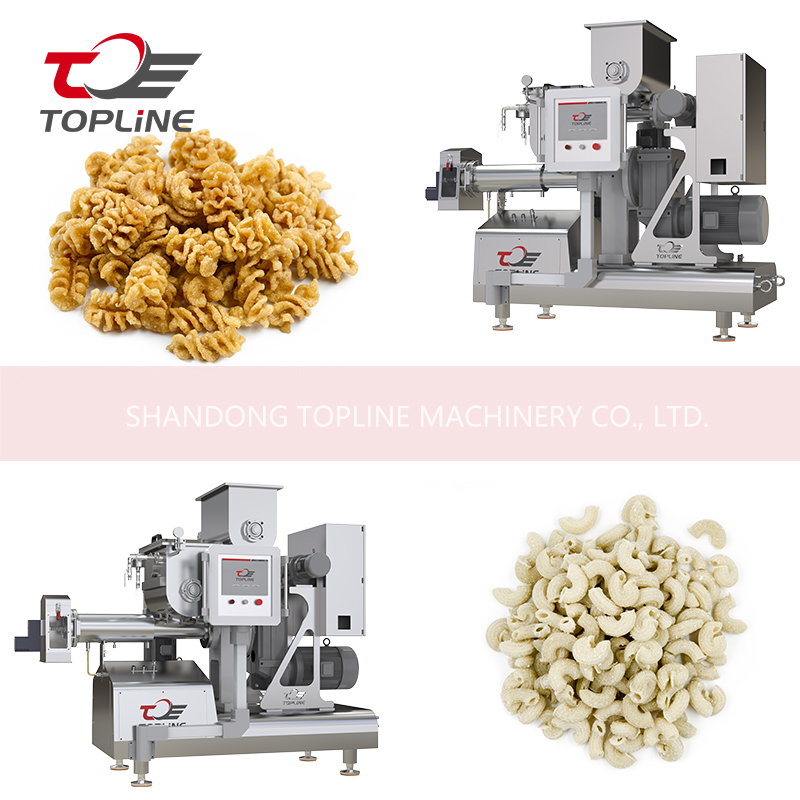

The TLSE Series pasta extruder machines are professional industrial-grade pasta production solutions engineered for factory-level food manufacturers across all production scales. Covering 5 models from TLSE100 to TLSE1000, this series delivers stable, reliable output ranging from 80kg/h to 1200kg/h, making it ideal for producing short-cut macaroni, spaghetti, and a wide range of customized pasta products to meet diverse market and production demands.
Parameter Detail
Product Type | Installed Power (kW) | Actual Power Consumption (kW) | Production Capacity (kg/h) | Dimensions (mm) |
TLSE100 | 12.5 | 8.5 | 80-150 | 2200X1000X1700 |
TLSE200 | 17.5 | 12.5 | 180-240 | 3150X1200X1800 |
TLSE300 | 32 | 25 | 280-350 | 4580X1350X2750 |
TLSE500 | 42 | 30 | 400-600 | 5200X2000X2950 |
TLSE1000 | 67.5 | 48 | 800-1200 | 5800X2200X2950 |
Machine Advantages for Business
1. All parts in contact with materials are made of 304 stainless steel to ensure food safety.
2. Hygienic design with large inclined surface and full-opening stainless steel cover, no dead corners, for convenient cleaning.
3. The barrel is made of high wear-resistant stainless steel to guarantee the service life.
4. Equipped with vacuum pump, auxiliary devices and pipelines to ensure the generation of vacuum state.
5. Equipped with vacuum feeder with fully enclosed design, which can effectively form a vacuum state.
6. Equipped with quick-opening cutting system, suitable for straight-cut short products.
7. Built-in cooling pipeline facilitates the entry of external coolant to ensure the quality of extruded products.
8. The designed service life of pressure-bearing parts is no less than 100,000 hours, ensuring long-term use of the equipment.
9. Adopt top domestic and international electrical components with high durability.
10. User-friendly human-machine interface control for more convenient operation.
FAQ
Q: What raw materials can the machine process?
A: The food extruder is mainly designed for Pasta products, various flour-based food products
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Can I request a customized size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A:Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A:Contact us via email/phone for a quote, then confirm with a PO.
Q: What material is the machine made of?
A: All food-contact parts adopt food-grade 304 stainless steel, durable, hygienic and easy to clean; wearing parts use high-strength alloy for long service life.
