Extruder Barrel: Structure, Materials And Selection Guide for Food Or Feed Extrusion

Extruder Barrel: Structure, Materials And Selection Guide for Food or Feed Extrusion

As one of the two core wear-resistant components of an extruder, the barrel (also known as the cylinder or screw barrel) works in tandem with the screw to contain the material, facilitate heat transfer from external sources, and generate the temperature and pressure required for cooking, shearing, and shaping. In the production of puffed snacks, pasta, pet food, and aquatic feed, the barrel plays a critical role in determining melt uniformity, operational stability, and product consistency. Selecting an appropriate structural design and material is the most direct way to extend service life and control production costs.

1. Why most twin-screw barrels utilize a segmented structure:

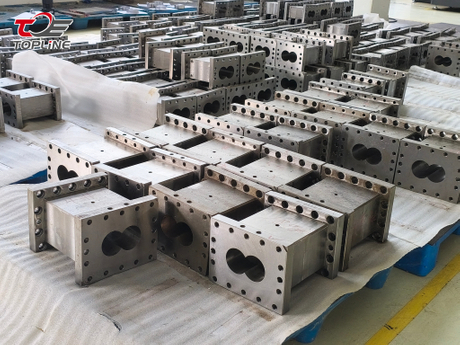

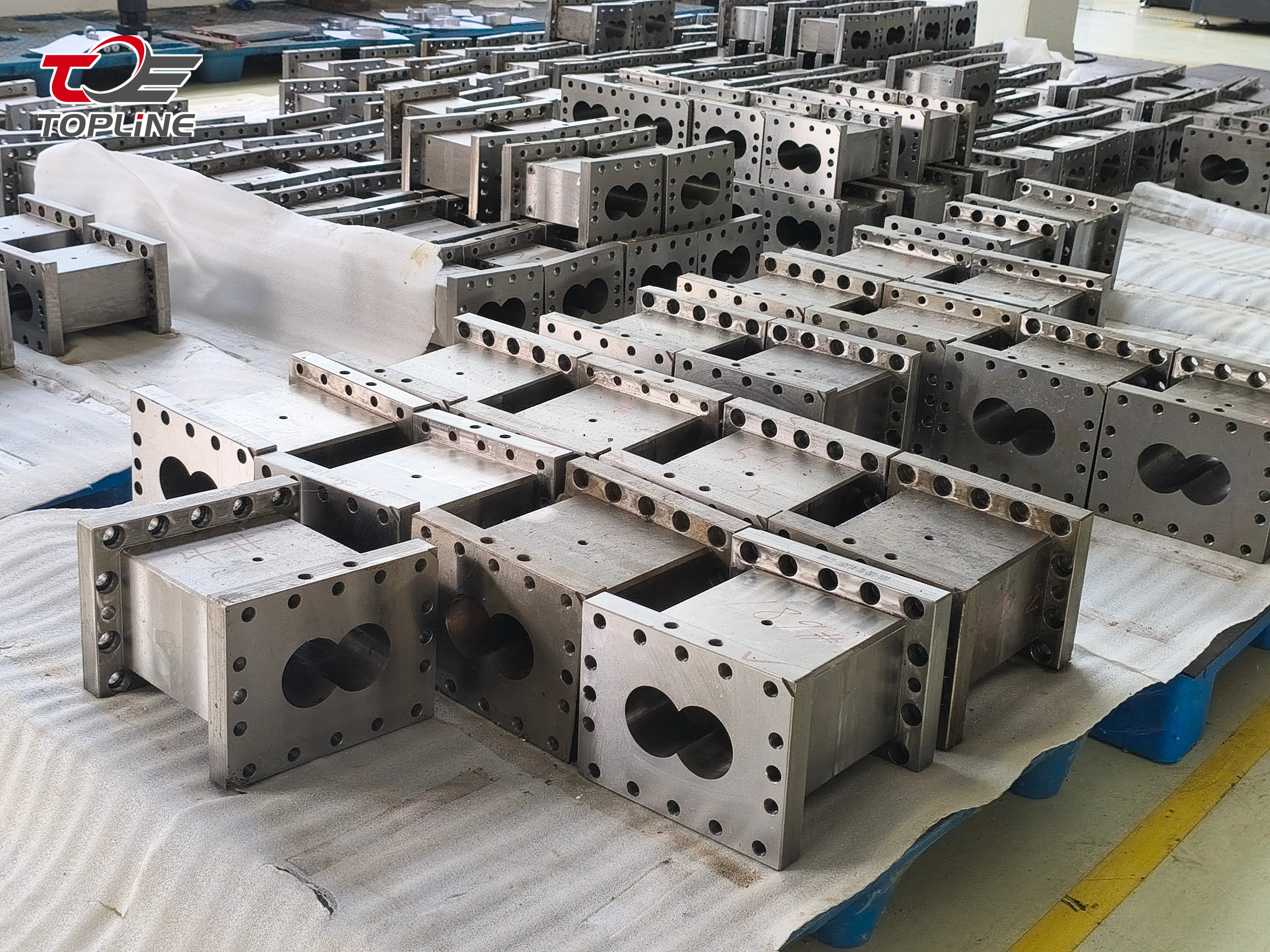

Long twin-screw barrels are typically composed of multiple sections—each approximately 4 to 6 screw diameters in length—that feature independent heating and cooling capabilities. This "modular" design offers three practical benefits: individual worn sections can be replaced without discarding the entire barrel; process zones—such as side feeding, venting, and liquid injection—can be flexibly arranged; and a single barrel assembly can accommodate different liners, allowing one machine to handle a wider range of formulations. Based on their opening configuration, barrels can be classified into several types: open (for feeding), closed, side-feeding, combined top- and side-opening, liquid-injection, and—commonly used in R&D and pilot testing—split-barrel designs.

2. Solid vs. Lined Designs:

Three common structural types: Solid (non-inserted) barrels—the bore is machined directly into a solid block of forged or rolled steel and then hardened as a single unit; these have low initial costs and suit unfilled or lightly filled formulations and small, lightly loaded machines, but the entire barrel section must be replaced when the bore wears out.

Integral alloy composite (bimetallic) barrels—a full-length wear-resistant alloy liner is bonded inside a steel barrel body; expensive alloy is used only where it contacts the material, and the wear-resistant layer is far thicker than a standard nitrided layer; this is the standard choice for mineral-filled, high-fiber, or high-ash formulations.

C-type (segmented liner) barrels—the barrel body features a replaceable liner; when the liner wears out, only the liner is replaced, while the barrel body—containing heating/cooling systems, flanges, and openings—is retained; replacement costs cover "a liner" rather than "a whole barrel section."

3. Common barrel materials and applications:

45# Steel (basic, cost-sensitive; for general unfilled formulations and light-load production lines); 42CrMo (superior strength and hardenability compared to 45#; for general blending and light filling applications);

38CrMoAlA nitriding steel (the industry standard; after quenching, tempering, forming, stabilizing, and nitriding, it achieves extremely high surface hardness while maintaining good core toughness; the nitrided layer is typically 0.5–0.7 mm thick with a hardness of HV 860–1,000; offering a balance of wear and corrosion resistance at a moderate cost, it is the standard choice for conventional puffed snacks, pasta, standard pet food, and general extrusion applications).

4. How to extend barrel service life:

Wear is measurable; do not rely on guesswork. Inspect internal clearances section by section and flight by flight according to the scheduled cycle to ensure that only the segments requiring attention are serviced; maintain barrel cleanliness during color or formula changes to prevent carbon buildup in the screw channels; strictly prohibit dry running; regularly verify heater contact and temperature control status; and coat spare segments with anti-rust oil for storage.

Adhering strictly to food-grade production standards, we manufacture our barrels using high-quality alloy steel and forgings, employing processes such as heat treatment (quenching and tempering), forming, stabilizing, nitriding (or bimetallic spray welding), precision grinding, and polishing. Our products feature precise dimensions, excellent interchangeability, and consistent wear resistance.

We offer customized barrel configurations tailored to specific extrusion scenarios—including twin-screw and single-screw barrels, solid and lined structures, and manufacturing based on customer drawings or samples—helping clients enhance production efficiency and reduce operating costs.
