An Overview of Macaroni Extrusion Dies

An Overview of Macaroni Extrusion Dies:

A Detailed Look at Materials, Classifications, and Forming Results

In pasta processing equipment, the extrusion die is the critical component determining the appearance, texture, quality, and grade of the finished product. Even when using the same flour and extrusion machinery, pairing them with dies of different materials or structural designs results in significant differences regarding texture, sauce adhesion, surface quality, and the product's pass rate. To help industry clients better understand equipment components and make informed selection decisions, this article provides an overview of macaroni extrusion die materials, structural characteristics, forming effects, and suitable applications.

Mainstream Materials for Macaroni Dies: A Comparison of Pros and Cons

Currently, extrusion dies used for the mass production of macaroni, pasta, and fruit/vegetable-infused noodles fall into three material categories, each corresponding to specific product positioning and production requirements.

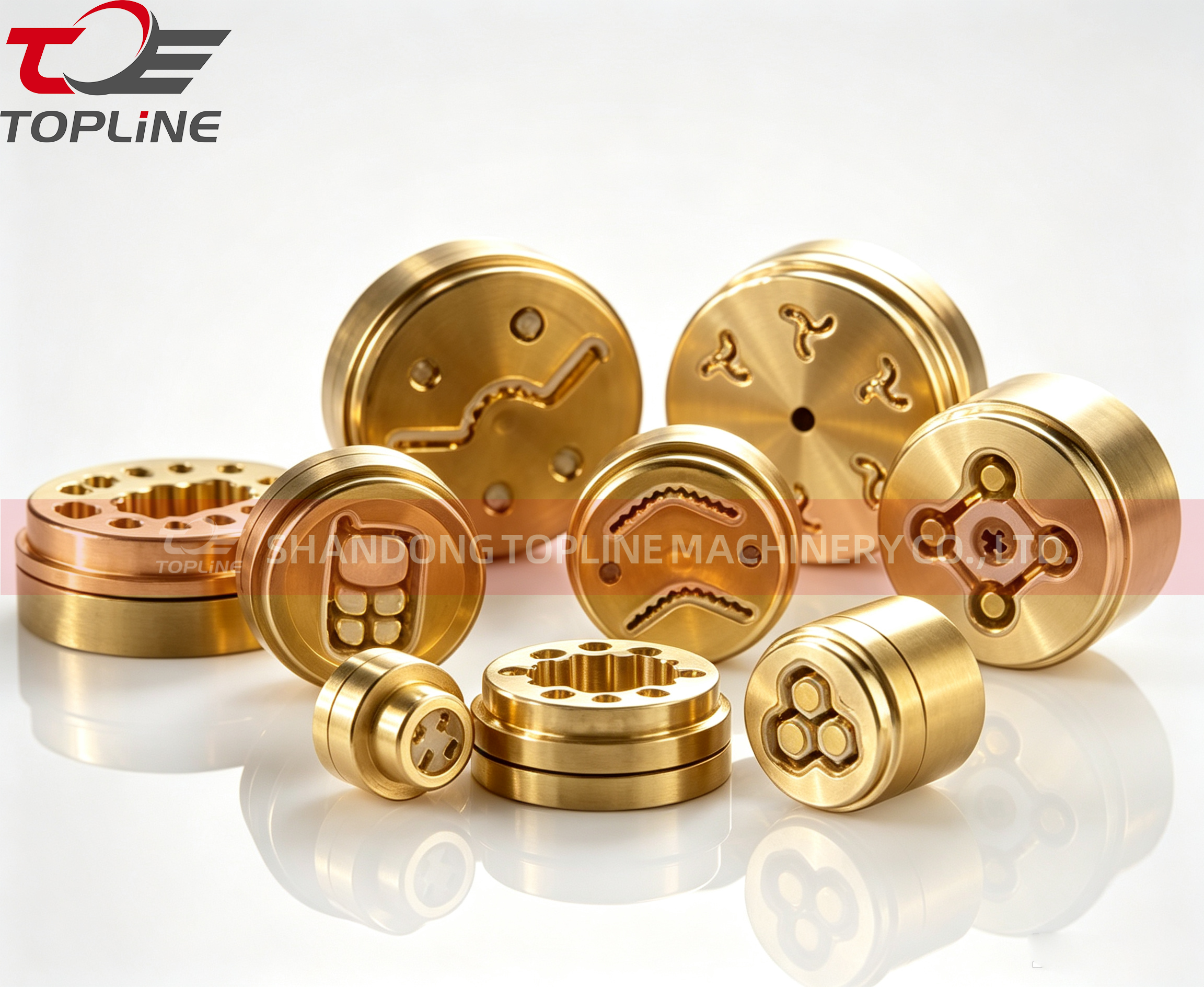

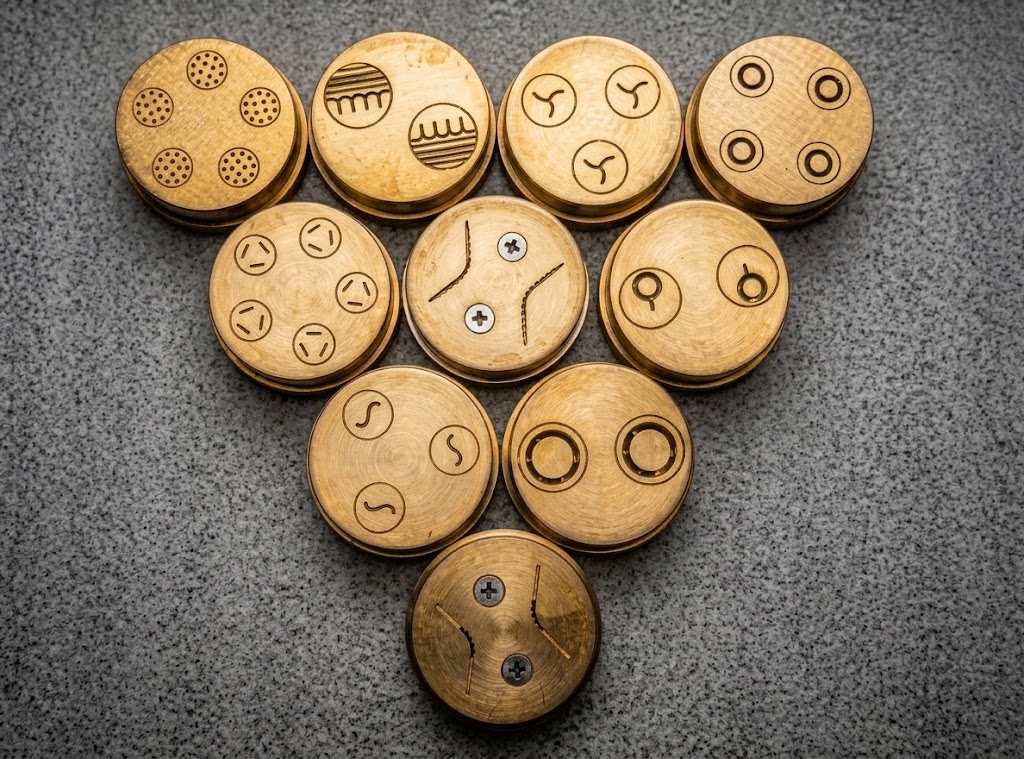

1. Bronze Dies (Specialized for Premium Pasta)

Bronze dies feature a matte texture on the inner walls of the die holes. As dough is extruded under high pressure, the resulting noodles develop a fine, microporous surface structure. After cooking, the noodles offer a firmer, more complex texture. These dies ensure stable extrusion pressure, yielding a dense, bubble-free, and durable finished product that is resistant to breakage.

Drawbacks include higher resistance, slightly lower production capacity, and faster wear rates. They are ideal for producing premium macaroni, export-grade pasta, and high-quality durum wheat noodles.

2. Teflon-Coated Bronze Dies (The Preferred Choice for General Mass Production)

These dies utilize a bronze base with a food-grade Teflon coating applied to the inner walls of the die holes. The coating makes the holes smoother, facilitates easier release, and minimizes dough residue.

They offer a long service life, are resistant to clogging, and provide excellent cost-effectiveness.

The downside is that the noodle surface is very smooth; compared to pure bronze dies, sauce adhesion is reduced. They are best suited for the mass production of standard commercial macaroni and pasta.

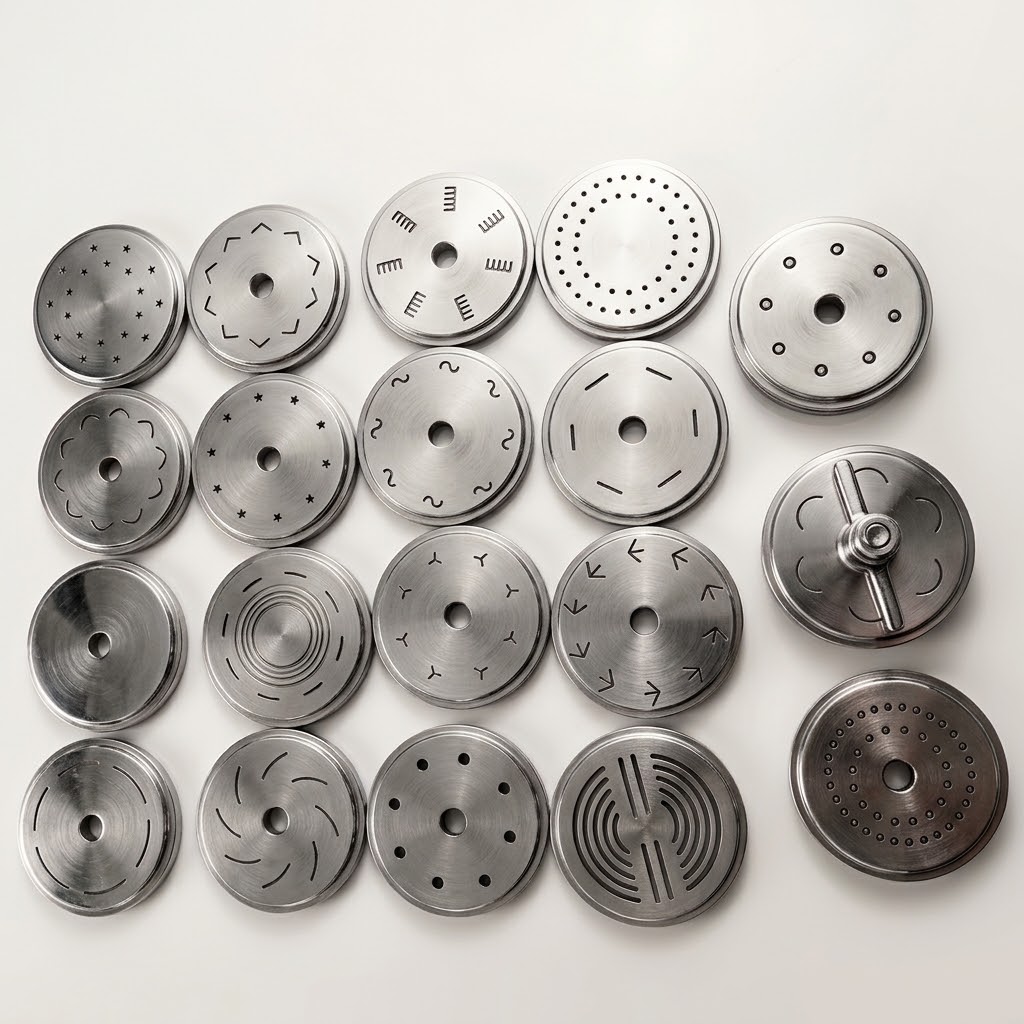

3. Stainless Steel Dies (Specialized for Children's Fruit & Vegetable Noodles)

Stainless steel dies are corrosion-resistant, rust-resistant, and easy to clean, making them ideal for producing colorful children's pasta infused with fruit/vegetable powders or colorants. These dies feature high hardness and slow wear rates, offering the longest service life of the three types. However, stainless steel die holes are excessively smooth, resulting in mediocre sauce adhesion; they are better suited for producing hollow pasta for children, fruit/vegetable-infused pasta, or puffed pasta products, rather than high-end, firm-textured pasta.

Industry Selection Summary: Which Die Works Best?

1. For high-end, export-oriented, or premium pasta: Bronze dies are the top choice, offering superior texture, visual appeal, and sauce adhesion.

2. For mass production prioritizing cost-effectiveness and output: Teflon-coated bronze dies are preferred for their stability, efficiency, and low failure rate.

3. For colorful fruit/vegetable pasta, children's complementary food pasta, or applications requiring frequent cleaning: Stainless steel dies are the best option due to their corrosion resistance and superior hygiene.

4. For multi-variety production: Modular insert dies can be used; individual holes can be replaced separately, thereby reducing operating costs.

Conclusion

Pasta dies are critical precision components in extrusion production lines; their material and structure directly determine product positioning and market competitiveness. Selecting the right die not only enhances the texture and visual appeal of the pasta but also improves production stability, reduces waste rates, and extends equipment lifespan—making it a crucial step for pasta manufacturers looking to optimize products and elevate quality.
